Why Choose the KAIXUN KX-CTD10A Full Electric Stacker?
Kaixun Full Electric Stacker(KX-CTD10A) is equipped with two 12V/80Ah GEL batteries, an ergonomic handle with a built-in safety switch, and a key-operated emergency switch for added protection, ensuring smooth and reliable operation. The external charger connector allows for convenient charging, while the built-in display provides real-time updates on battery level and operating hours for easy monitoring. This fully electric stacker offers dual lift height configurations and integrates electric steering and lifting systems for maximum efficiency and flexibility, with a compact turning radius for maneuverability, making it the perfect solution for efficient material handling in tight spaces.
Features:
- Dual Lift Heights: 98’’
- Adjustable straddle feet accommodate varying pallet sizes
- Rechargeable maintenance-free Gel batteries, 6-8 hours for using and recharging (Fully charge battery before use to avoid damaging cells)
- Multi-function display shows the working hours, battery status and low-voltage protection
- Built-in Safety Features: Plexiglass protection and explosion-proof valve provide added safety
- Designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp
- Charge the forklift once a month even it’s not in use

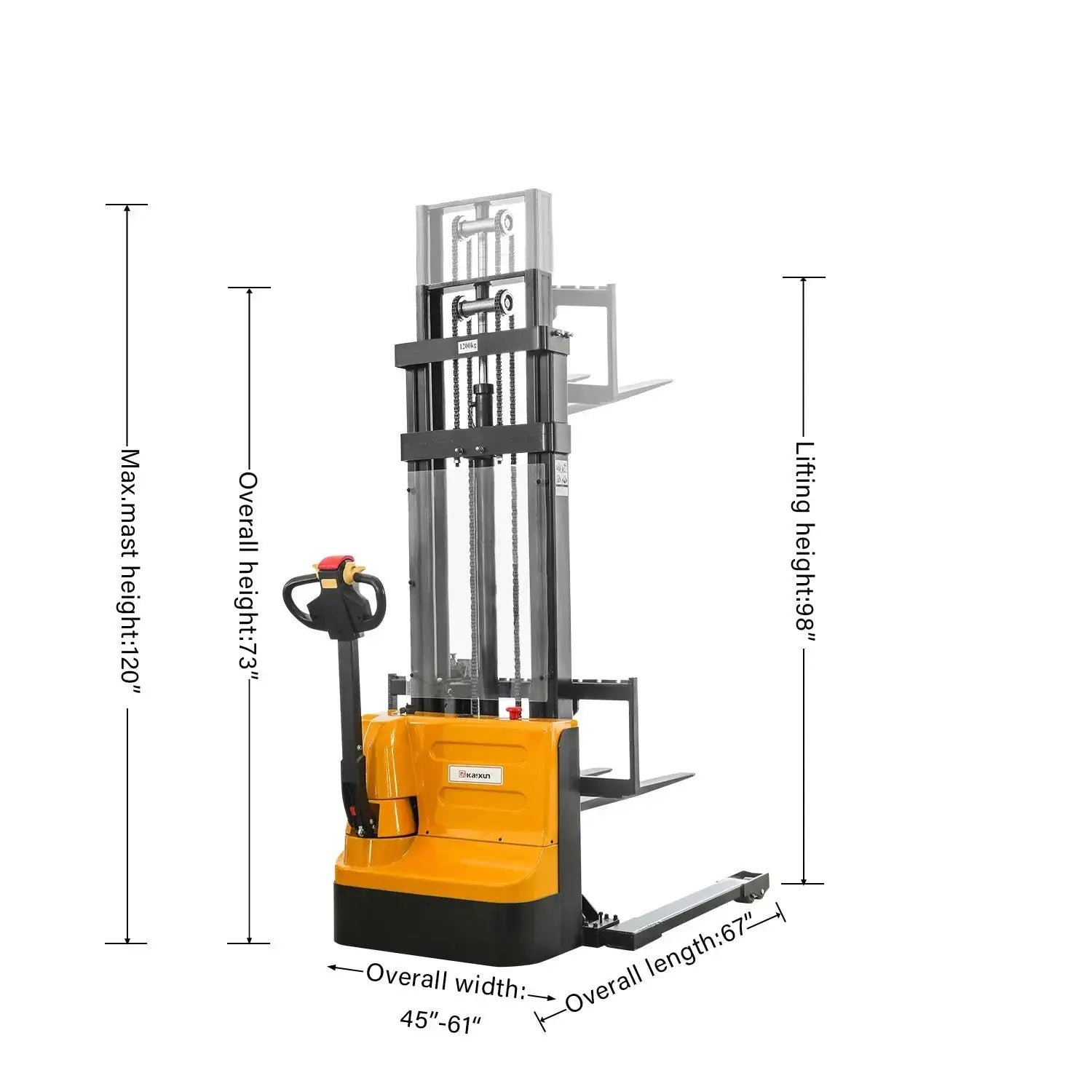

Specifications
| General | |||||
| Rated load | lbs | 2200 | N.W. | lbs | 1292 |
|---|---|---|---|---|---|
| Dimensions | |||||
| Overall length | in | 67 | Overall width | in | 45-61 |
| Overall height | in | 63/73/83 | Max. mast height | in | 101/120/140 |
| Turning radius | in | 57 | Wheel base | in | 49 |
| Forks | |||||
| Lifting height | in | 79/98/118 | Fork size | in | 42.1*3.9*1.4 |
| Fork adjustable width | in | 9.8-39 | |||
| Wheel | |||||
| Carrying wheel | in | φ3.1×2.8 | Driving wheel | in | φ7×2 |
| Motor | |||||
| Lift motor | KW | 2.2 | Drive motor | KW | 0.75 |
| Battery & Charge | |||||
| Battery | V/Ah | 2×12/80 | |||
| Speed | |||||
| Lifting speed full-load | in/s | 4 | Driving speed full-load | mph | 2.8 |
Powerful Performance
A Full Electric Stacker like the KAIXUN KX-CTD10A is designed to handle heavy-duty tasks efficiently. With a capacity of 2200 lbs, it can lift loads smoothly up to 98 inches. Because it uses electric power, this stacker reduces noise pollution and fuel costs compared to traditional forklifts. So, whether you’re in a warehouse or construction site, this stacker ensures consistent performance.
Easy to Operate and Maintain
Operating the KAIXUN KX-CTD10A is simple because of its user-friendly controls and intuitive design. But maintenance is also a breeze due to its durable components and easy-to-access parts. This means less downtime and more productivity for your team. Additionally, the battery life lasts long enough to complete multiple shifts without needing frequent recharging.
Safety and Versatility
Safety features are built into the KAIXUN KX-CTD10A, so operators can work confidently. For example, the stacker includes overload protection and emergency stop buttons. However, versatility is another key advantage—it can be used indoors and outdoors, making it ideal for various industries. Because of its compact size and maneuverability, it fits perfectly in tight spaces while still delivering reliable results.
