KX-QDCXa15 3300lbs Electric Pallet Truck: Efficient, Durable and Safe

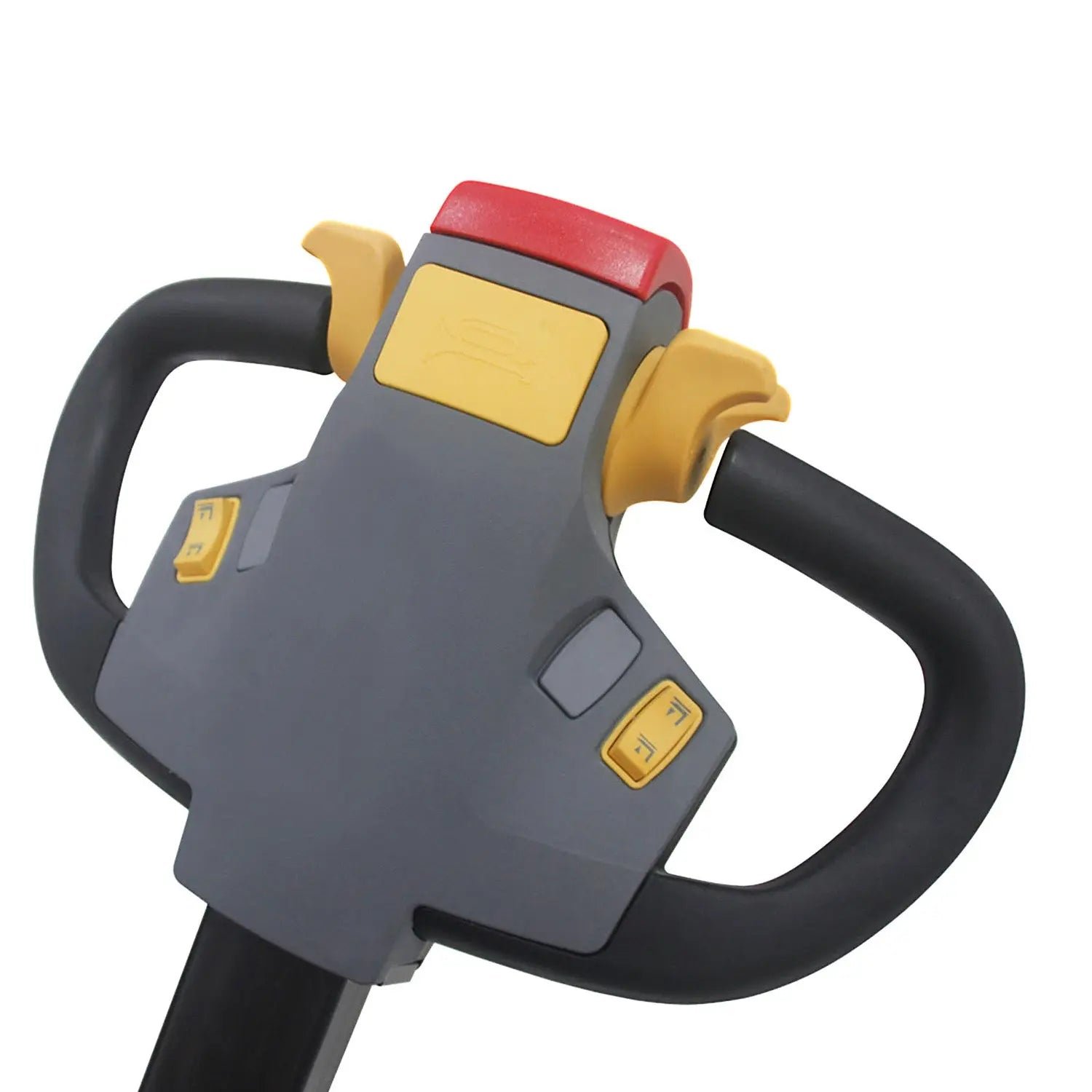

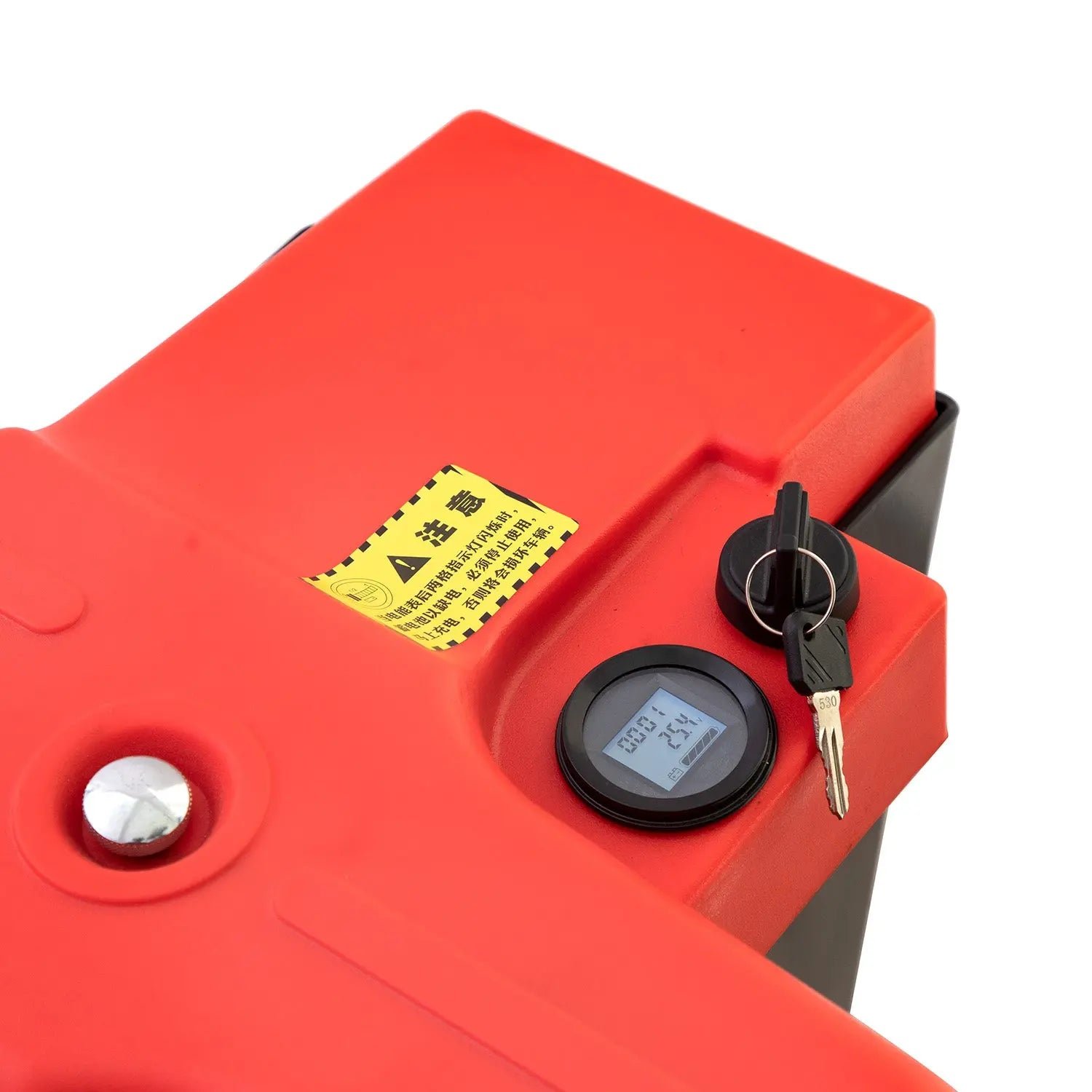

This Kaixun electric pallet truck offers exceptional efficiency and reliability, featuring a 750W permanent magnet motor and an 800W hydraulic power unit, enabling up to 8 hours of continuous operation with a full load. Its compact 680mm width and tight turning radius make it ideal for narrow spaces, while the low center of gravity and split steering structure provide smooth handling and 10% slope capability (unloaded). The modular design ensures easy maintenance with replaceable components, and its high-strength chassis and reinforced fork legs enhance durability. Equipped with over-voltage, over-current, and high-temperature protection, an emergency reverse button, and a red power-off switch, the truck ensures safety, while the digital display offers real-time battery feedback.
Specifications
| General | |||||
| Rated load | lbs | 3300 | N.W. | lbs | 420 |
|---|---|---|---|---|---|
| Dimensions | |||||

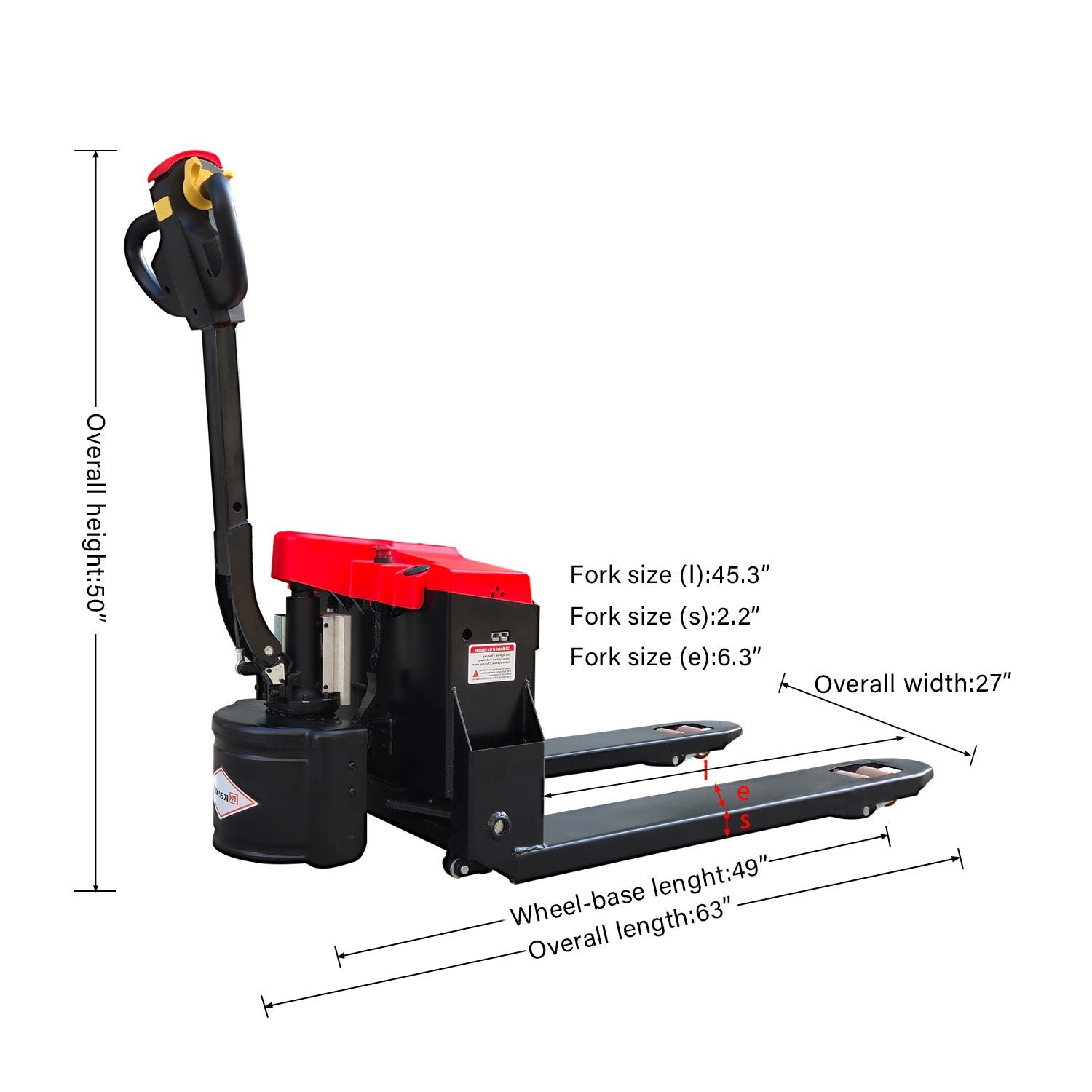

| Overall length | in | 63 | Overall width | in | 27 |
| Overall height | in | 24/50(without/with handle) | |||
| Turning radius | in | 56 | Wheel base | in | 50 |
| Forks | |||||
| Fork lowest height | in | 3.3 | Max. fork height | in | 7.9 |
| Fork size | in | 45.3*6.3*2.2(L*W*H) | |||
| Wheel | |||||
| Wheel tire material | – | Polyurethane(PU) | Carrying wheel | in | φ3.1*2.4 |
| Driving wheel | in | φ8.3*2.8 | |||
| Power | |||||
| Lift motor | KW | 0.8 | Drive motor | KW | Brush 0.75 |
| Battery & Charge | |||||
| Battery voltage/rated capacity | V/Ah | 2*12/65 |
